Endoscopic Ultrasound
EG-UC5T EG-UR5
With ultrasound endoscopy,
we are looking beyond just a better diagnosis yield.
Introducing* the EG-UC5T Linear-Array echoendoscope
that widens staging and therapeutic options.
Reaping the benefits of decades of ultrasound technology know-how,
combined with our endorsed endoscope design,
SonoScape’s EG-UC5T fulfils and exceeds the most sought-after
requirement from your medical team, levelling up the vision
and achievement behind the wall of the GI tract.
All Rounder
There is never right or wrong echoendoscope but the one fits your clinical needs.
The versatile EG-UC5T makes the choice easier.
4.0-mm Instrument channel
12.6-mm Insertion diameter
Short rigid distal end and small bending radius
Scanning angle amounts to 150°
4-12MHz acoustic frequency
Imaging Pioneer
Get access to one of the finest ultrasound images worldwide, well-known amongst your radiology colleagues.
- All common modalities and Doppler technology

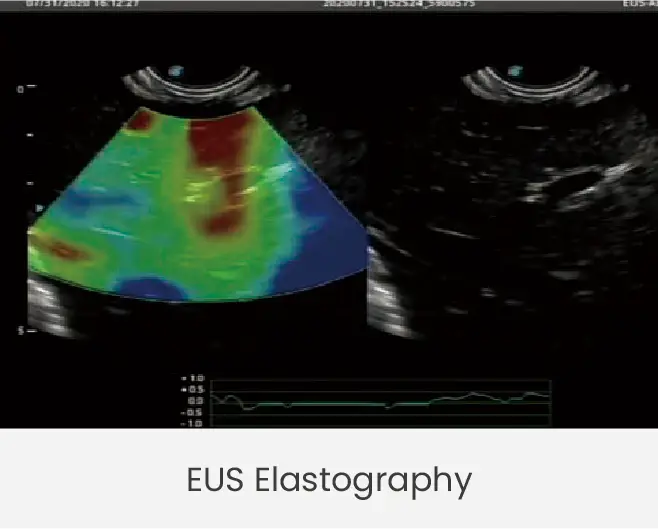

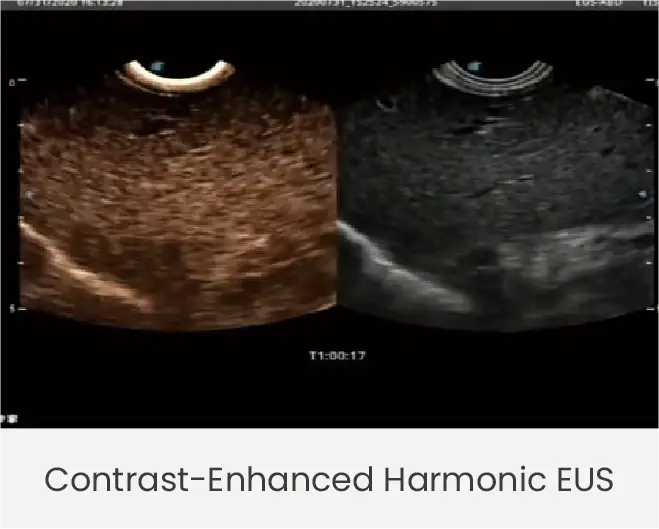

- Contrast-Enhanced Harmonic EUS and EUS elastography
- Transducer of the latest generation with improved electromagnetic shielding technology
All common modalities and Doppler technology.
Contrast-Enhanced Harmonic EUS and EUS elastography.

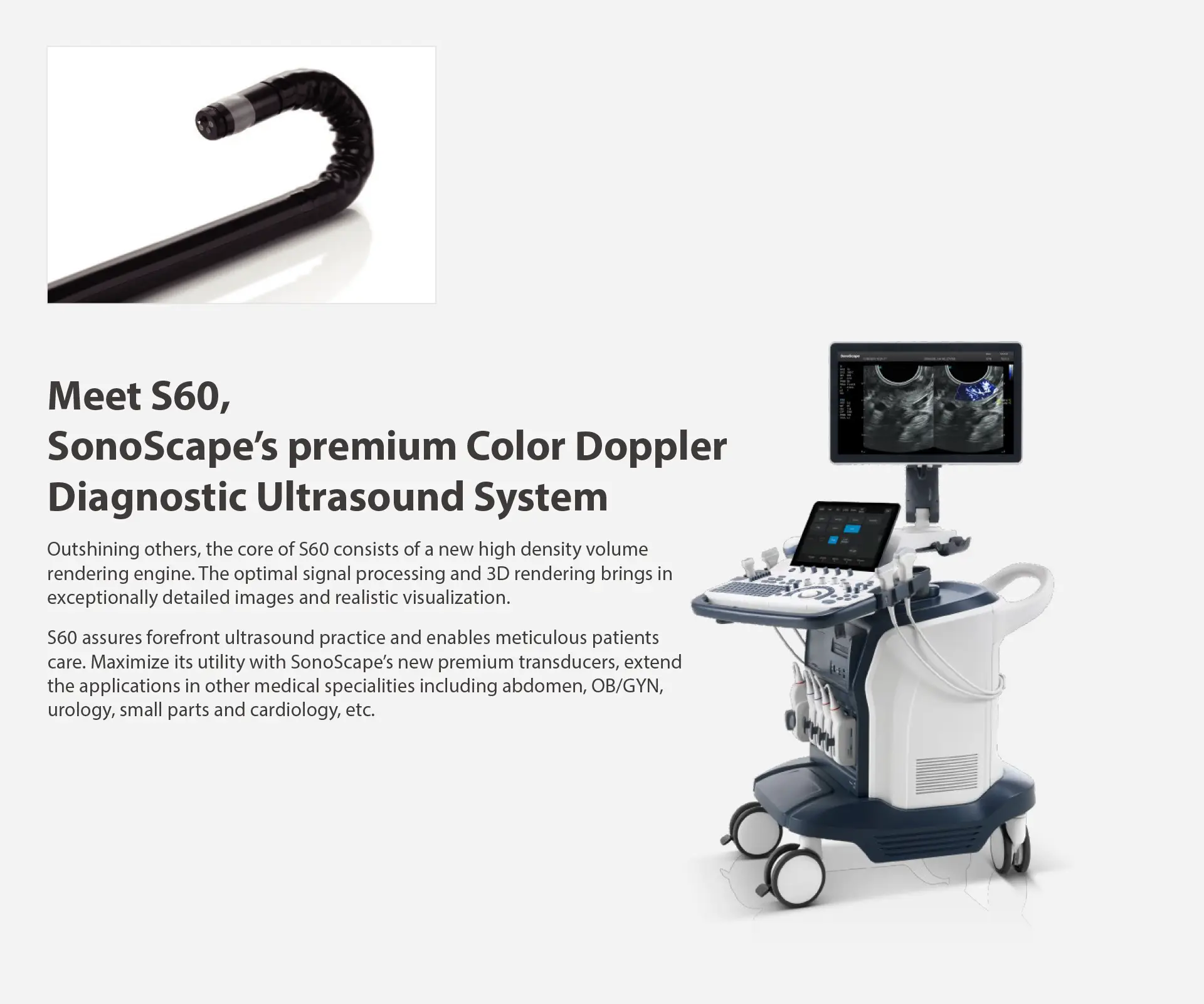

SonoScape’s premium ultrasound processor S60 generates top-quality images, leading to a more accurate characterisation of GI and pancreaticobiliary tumours.
The transducer of the latest generation comes with an improved electromagnetic shielding technology, which lessens the interference and reduces image artifacts
Attention to Detail
The EG-UC5T is designed to offer you maximum comfort in procedures and minimum concern of safety, in indispensable details.
- Light-weight handle with four fully customizable buttons
- A unique cut-out design on the back of the elevator facilitates scope cleaning
Endoscopic Ultrasound
EG-UC5T EG-UR5
The combination of SonoScape’s strongest know-how is no longer a speculation.
The arrival of the 360° radial echoendoscope EG-UR5 is now the touchstone of precise diagnosis in the GI tract and its extra-luminal structure.
Let it guide your way and benefit from a mastery of both advanced ultrasound and endoscopy technology.
Mastery of View

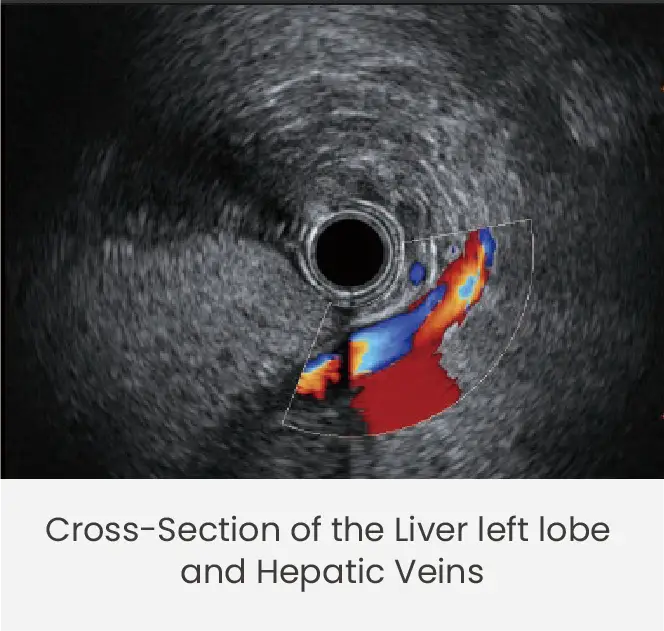

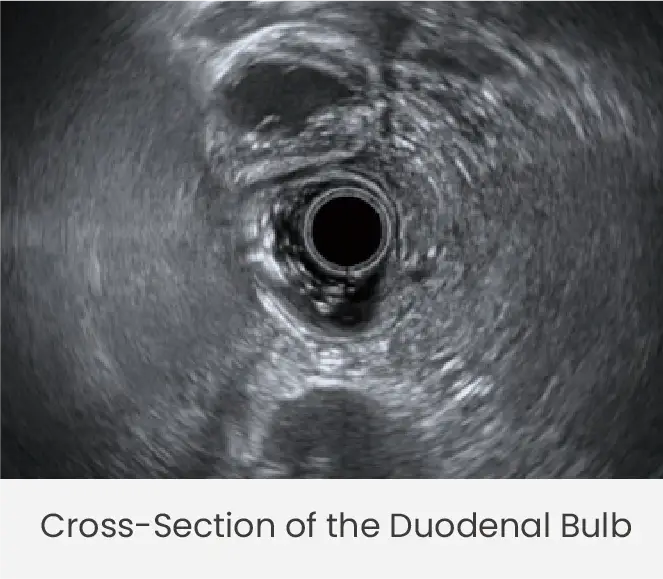

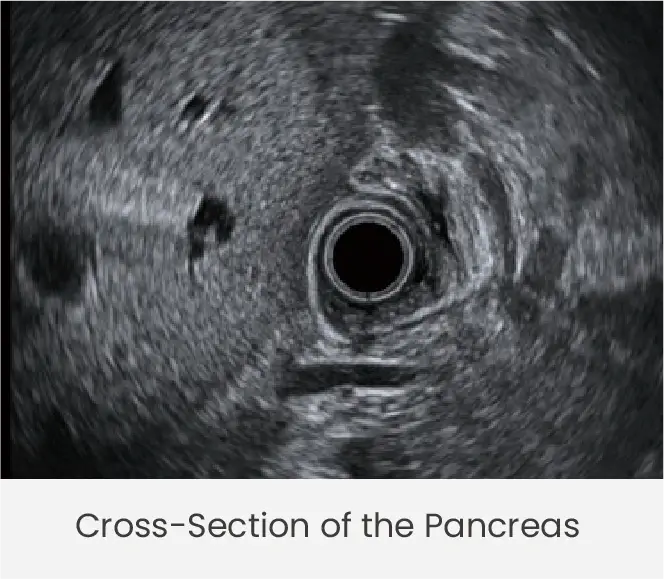

Achieve a broader vision with EG-UR5’s 360° scanning angle, and obtain an impartial perspective at each step as you advance.
The scope has a large field of view which doesn’t compromise the forward endoscopic visual field. The high-definition outputs from both the endoscopic and ultrasound systems jointly provide an outstanding precision in diagnosis.
Not to miss any important detail even if it is subepithelial, thanks to EG-UR5’s adjustable focus points, ample spectrum of ultrasound frequencies that penetrate deep in the tissue.
Mastery of Functionality
Take full advantage of SonoScape’s advanced ultrasound systems and their outstanding performance. Switch with ease amongst an array of display modes, B/M/CFM/Power Doppler/Pulse Wave Doppler, to suit changing clinical needs.
Assisted by not only the ultrasound information but also SonoScape’s chromoendoscopy technology, the pin-point diagnosis becomes possible. In addition, EG-UR5 offers an integrated 2.2mm working channel that allows direct biopsy.
Mastery of Comfort
Packed in a slim body, EG-UR5 possesses a small distal end with short bending radius as it deflects in all four directions.
Its versatility and flexibility will be appreciated by both you and your patients.
